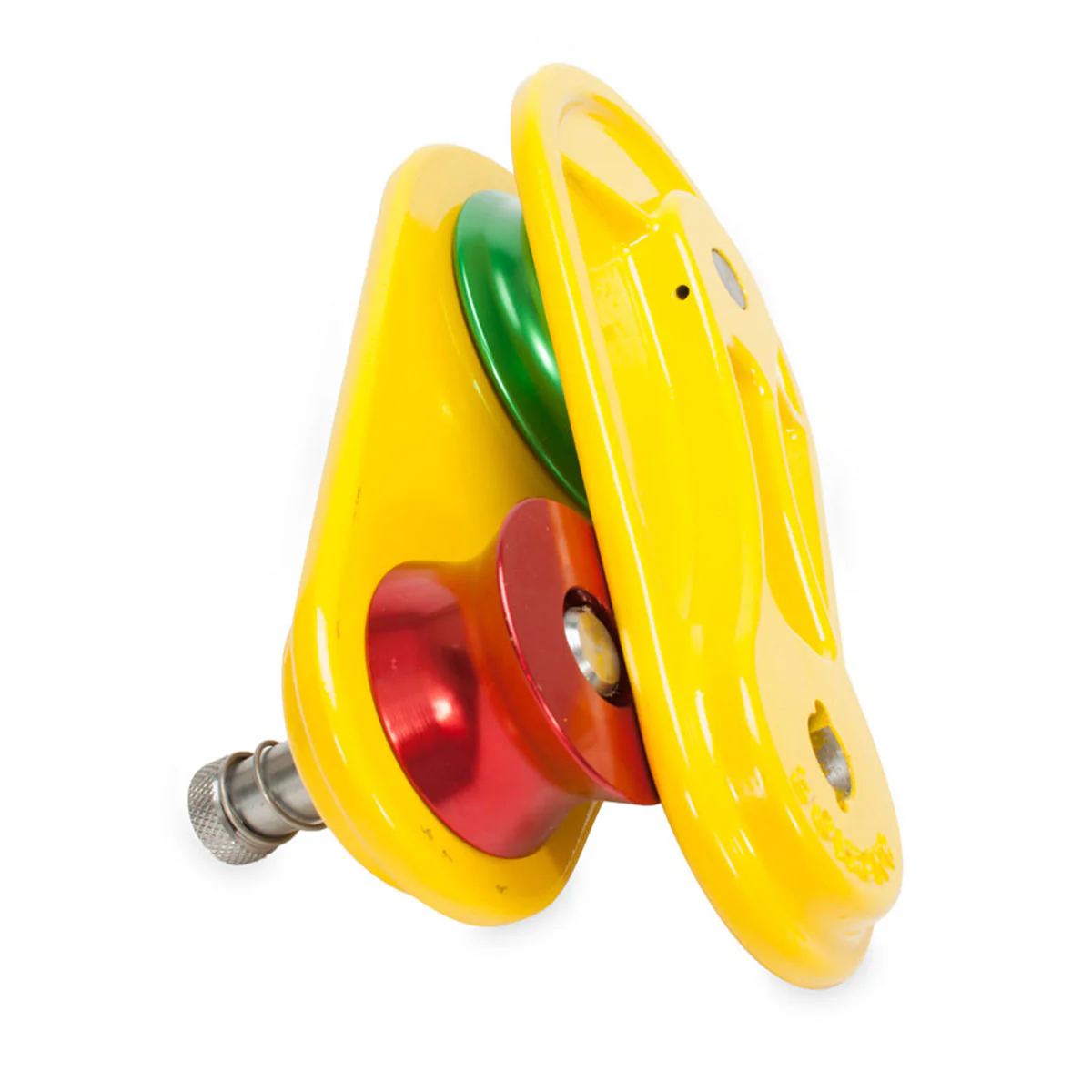

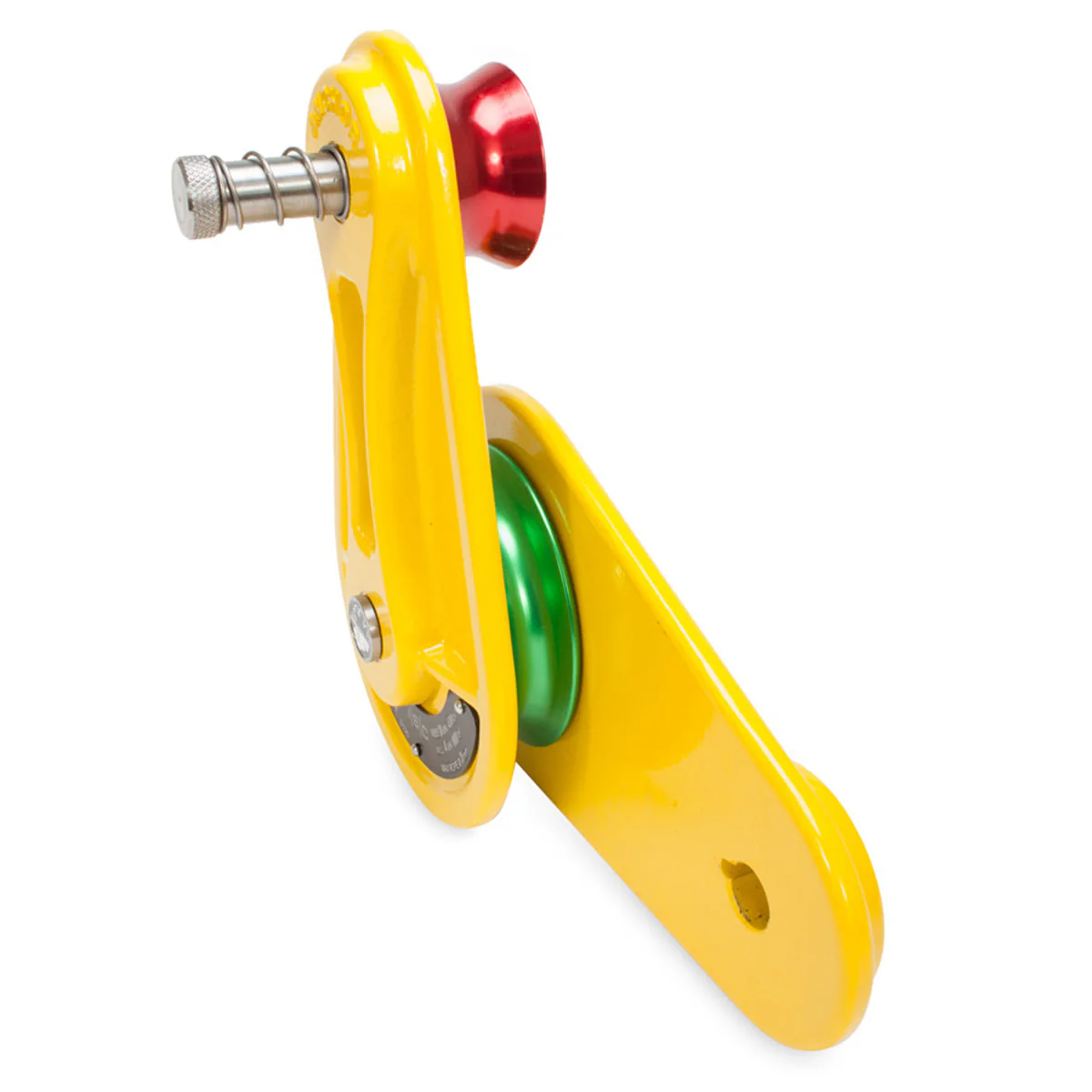

Pulley Block for 3/4" Rope - Yellow
The new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 200kN (44000lbs) MBS and a WLL of 40kN (8800lbs).
The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.
The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
Technical Data
Approved standards CE 0120
| SKU: | 8527 |
| Material: | Aluminum |
| MBS (kN/lbs): | 200kN/44,000lbs |
| WLL (kN/lbs): | 40kN/8,800lbs |
| Max Working Line Size: | 3/4" / 19mm (106kN/46,800lbs)** |
| Topping Strop Size (MBS)*: | 1 1/8" / 29mm (213kN/46,800lbs)** |
*Above figures based on using Yale Polydyne or Double Esterlon rope.
**Above figures based on using Yale Portland braid and 16mm dead eye sling.
Original: $245.76
-65%$245.76
$86.02Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 200kN (44000lbs) MBS and a WLL of 40kN (8800lbs).
The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.
The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
Technical Data
Approved standards CE 0120
| SKU: | 8527 |
| Material: | Aluminum |
| MBS (kN/lbs): | 200kN/44,000lbs |
| WLL (kN/lbs): | 40kN/8,800lbs |
| Max Working Line Size: | 3/4" / 19mm (106kN/46,800lbs)** |
| Topping Strop Size (MBS)*: | 1 1/8" / 29mm (213kN/46,800lbs)** |
*Above figures based on using Yale Polydyne or Double Esterlon rope.
**Above figures based on using Yale Portland braid and 16mm dead eye sling.
